Delivery Option

a.Gases delivered in cylinders

You need mobility and consume gas volumes not exceeding 5000m³ a month? Available in several sizes, materials and ergonomics, the cylinder supply associated to mobility, ease and flexibility of use… Jay Emm Gasese offers you the most suitable solution in the market.

Packaged gases

Gases are extremely light and not very dense: they take up a large volume but are very low in mass. To transport them in a cost-effective way, they can be compressed.

Compressed gases are stored into aluminium steel or composite material cylinders under a pressure of 200 bars i.e. 200 times normal atmospheric pressure. Accordingly, a one-liter cylinder allows obtaining around 200 liters of gas once it is expanded. For some applications, the storage pressure may be even higher, up to 700 bars.

1      More safety for cylinders

You benefit from our high level of safety thanks to innovation cylinder’ top including caps, regulators and an emergency shutdown system.

2      Innovation in motion

Our dynamic researchers are continuously working to provide you with easier and safer gas cylinders. We pay particular attention to cylinders' top so as to improve handling, reliability and safety.

3      More mobility and versatility

Thanks to adapted volumes, cylinder's tops, and associated equipment, packaged gases

The choice for a type of industrial packaged gas makes from six criteria

Cylinder size

Cylinders are available in a wide range of sizes, to answer the need of each customer, from loose cylinders to bundles of 16 cylinders. These cylinders are made of steel, aluminium or stainless steel, according to their compatibilities with materials. For non compatible gases with the common materials, a special passivation treatment in then conducted on the cylinder’s walls.

Valves

Cylinders are equipped with a wide range of valves, from Residual Pressure valves (RPV) to integrated valve regulator.

Molecules

Oxygen, Nitrogen, Argon, Mixtures… All kind of molecules are available in our catalog, including the most performance branded gases (e.g. ARCAL, ALIGAL, LASAL, PHARGALIS, etc) adapted to your specific demands.

Dedicated services

Jay Emm Gasese India provides you with a full set of services. From cylinder connection at your premises, to the global management of your overall cylinder warehouse, with a Local Customer Support, Jay Emm Gasese allows you to concentrate on your core activities.

Distribution channel

Jay Emm Gasese offers you a very diverse distribution channel. Please visit our country website for the most appropriate one to your needs.

b.Gases delivered in bulk

Your process requires important volumes of gas and/or low temperatures. When you need significant quantity of gas (from 10,000 m3/month and up) or when you have a cryogenic application, bulk deliveries provide a safe, reliable mode of supply.

You get the product, when you need it, at the best cost. Gases are extremely light and not very dense: they take up a large volume but are very low in mass. To transport them in a cost-effective way, they can be liquefied.

Gases are liquefied by significantly lowering their temperature: from -183°C for oxygen to -269°C for helium. It saves a substantial amount of volume: one liter of liquid nitrogen yields 691 liters of gas; one liter of liquid helium yields 748 liters of gas; and one liter of liquid oxygen yields 854 liters of gas.

Gases are generally liquefied during the production phase and directly stored onsite into large cryogenic tanks. They are then dispatched to the customers’ site inside perfectly insulated cryogenic transport tanks. They are transported by road, but also by rail and ship. Once delivered to the customer, they are decanted into a cryogenic container.

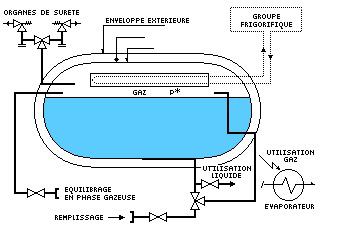

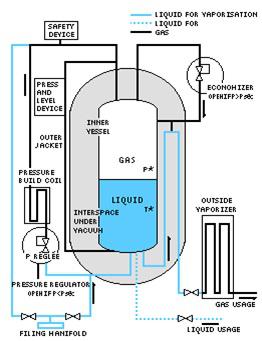

Bulk installations consist of :

One or more storage tanks at various pressures and in various designs, depending on the gas (air gases or Carbon Dioxide)

Vaporizers using the heat sources such as ambient air, electrical heating, or liquid bath of glycol (or water) heated by another source

Pressure regulation equipment Jay Emm Gasese service teams take full responsibility for the installation omaintenance of the vessels at your site as well as the deliveries of bulk products.

Jay Emm Gasese has developed a tele-monitoring system for its customers, enabling onsite monitoring of reservoirs into which liquefied gases are stored. These innovative technologies ensure a continuous gas supply for their processes.

With our premium bulk offers, your staff focuses on your process and our service teams take full responsability for supplying the gas: by continuously monitoring the level of your tank, we adjust the delivery schedule as needed.

c.Gases produced on-site

In supply gas, you look for the continuity of supply, the compliance to your specifications, the autonomy, the cost optimization, all in the respect of the environment?

You look for a fully reliable just in time delivery of molecules at optimized costs. FLOXAL solutions exclusively answer all your needs for on-site production!

FLOXAL is more than an on-site gas supply, it is a complete customized solution operated by Jay Emm Gasese.

FLOXAL allows you to evolve in optimal and sustainable conditions thanks to a tailored solution of on-site gas delivery, invested and managed by Jay Emm Gasese. We take full responsibility of your gas needs from the design to the operation of the on-site plant on a long term basis.

FLOXAL Nitrogen - Nitrogen on-site solution

You choose the quality you need: we work together with you to select the nitrogen content that best fits your application. Floxal is the optimum solution that meets both your most stringent quality requirements and cost cutting goals

A customized solution

You produce only what you use: the Floxal service ensures a perfect match between production and usage. The equipment follows your Nitrogen demand profile, regardless of Flow variation.

In case of permanent change requirements, the capacity of the system can be updated. All risks due to deliveries are eliminated.

You customize your service: the information relative to the production system as well as any kind of analysis related to the Nitrogen supply is available. A full range of optional services is offered.

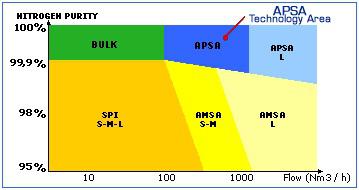

APSA Technology - Nitrogen Generators

The FLOXAL™ APSA installation is a nitrogen generator using the cryogenic distillation of air. This generator also comes with a liquid nitrogen tank and atmospheric vaporizers that ensure a peak supply of nitrogen supply.

• The installation comprises the following :

• The compressor

• The warm skid

• The cold box containing the cryogenic exchangers and distillation column

• The liquid nitrogen tank

• The atmospheric heaters

• The buffer tank

• The tele-monitoring system

• The counting device

As the pioneer of on-site solutions, Jay Emm Gasese has designed a full range of solutions adapted to your specific needs:

FLOXAL Hydrogen - Hydrogen on-site solution

At JAY EMM GASESE, we understand that hydrogen plays a vital role in your business. Continuity of your hydrogen supply is essential in your process. Which is why our Floxal Hydrogen Offer is developed to provide you the best cost effective and worry-free solution for your Hydrogen Supply. Our reliable long-time service, in which we own, maintain and operate the system, offers you a unique opportunity to focus on what is the most important for you, your business.

• Customized to your benefit

Thanks to HYOS Flexibility and its Modular design, we select the best installation that meets your demand regardless of flow variation. In case of permanent change requirements, the capacity of the system can be updated. Truck Deliveries are reduced to the back-up use only. Already available in oxygen, nitrogen and compressed air, Floxal solutions are easily implemented and require no investment on the part of the customer. JAY EMM GASESE installs and maintains the unit, managing it remotely to ensure optimal operation, freeing customers of the worry of stocking gas, monitoring stock levels, and placing orders.

You customize your service: the information relative to the production system as well as any kind of analysis related to the Hydrogen supply is available. Thanks to our broad experience in process, a full range of other services is available for your specific applications, for instance:
